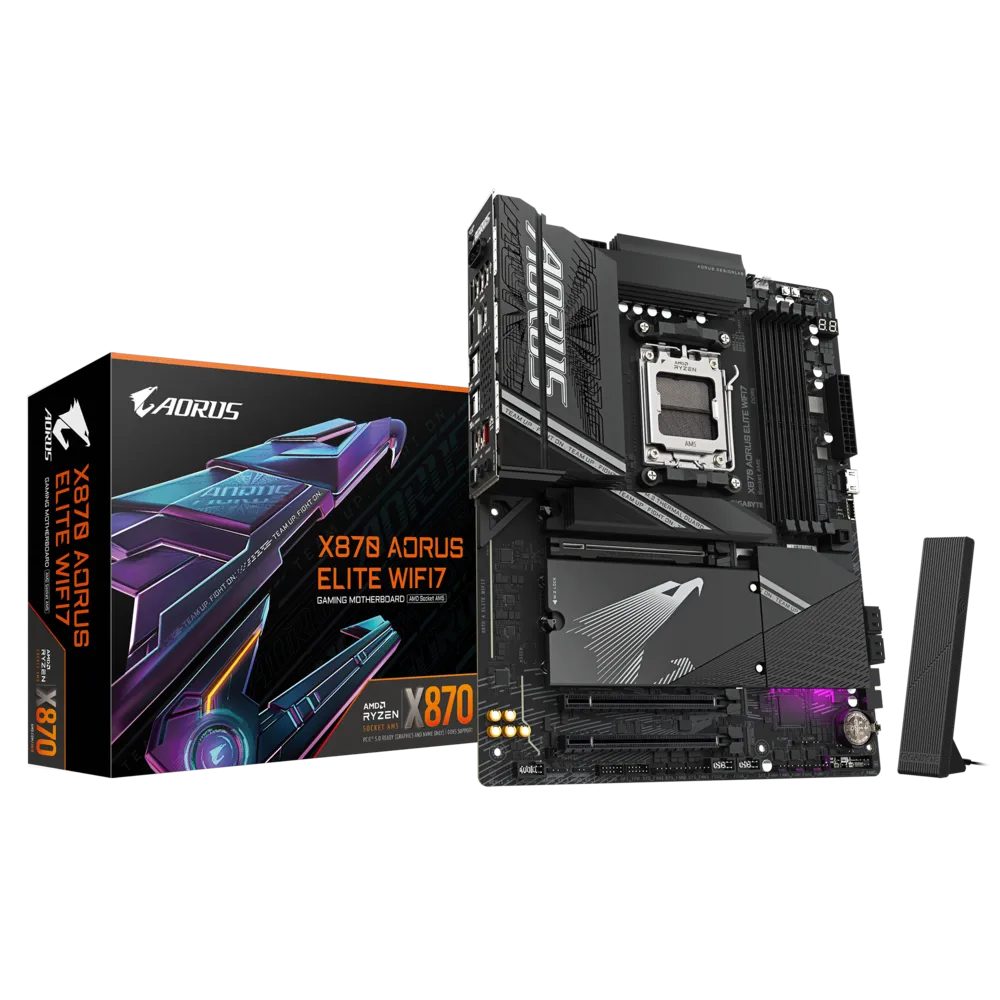

Дънна платка GB X870 AORUS ELITE WIFI7 /AM5

Дънна платка GB X870 AORUS ELITE WIFI7 /AM5

• Безжична връзка:
  • MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard
  • Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard
  • (Actual data rate may vary depending on environment and equipment.)
  • * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  • **Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations.
• Аудио:
  • Realtek® ALC1220 CODEC
  • * The back panel line out jack supports DSD audio
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
• Операционна система: Support for Windows 11 64-bit
• Памет:
  • Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)
• Графика:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
  • 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • Integrated Graphics Processor with AMD Radeon™ Graphics support
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
  • * Support for HDMI 1.4 version
  • (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time
• Слотове за разширение:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
  • When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
  • Chipset
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
• Форм-фактор:
  • \t ATX Form Factor
  • 30.5cm x 24.4cm
• Конектори:
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x HDMI port (Note)
  • 1 x power button
• Чипсет: AMD X870
• Съхранение:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
  • 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• Портове отзад: iTE® I/O Controller Chip
• Мрежа (LAN): Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
