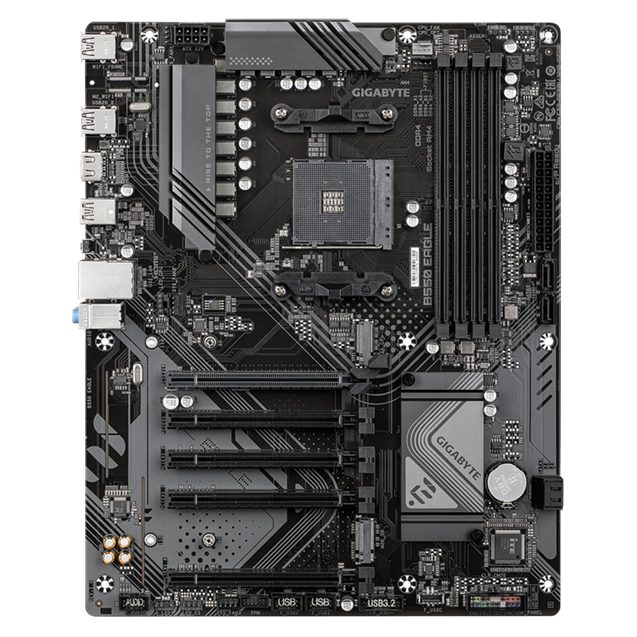

Дънна платка GB B550 EAGLE / AM4

Дънна платка GB B550 EAGLE / AM4

• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Памет:
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Графика:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
  • Maximum shared memory of 16 GB
• Слотове за разширение:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
• Форм-фактор:
  • ATX Form Factor
  • 30.5cm x 24.4cm
• Конектори:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
  • Back Panel Connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port (Note)
• Поддържани процесори:
  • AMD Socket AM4, support for:
  • AMD Ryzen™ 5000 G-Series Processors/
  • AMD Ryzen™ 5000 Series Processors/
  • AMD Ryzen™ 4000 G-Series Processors/
  • AMD Ryzen™ 3000 G-Series Processors/
  • AMD Ryzen™ 3000 Series Processors
• Чипсет: AMD B550
• Съхранение:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  • AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
  • AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• Портове отзад: iTE® I/O Controller Chip
• Мрежа (LAN): Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• USB:
  • CPU:
  • AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
  • AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
