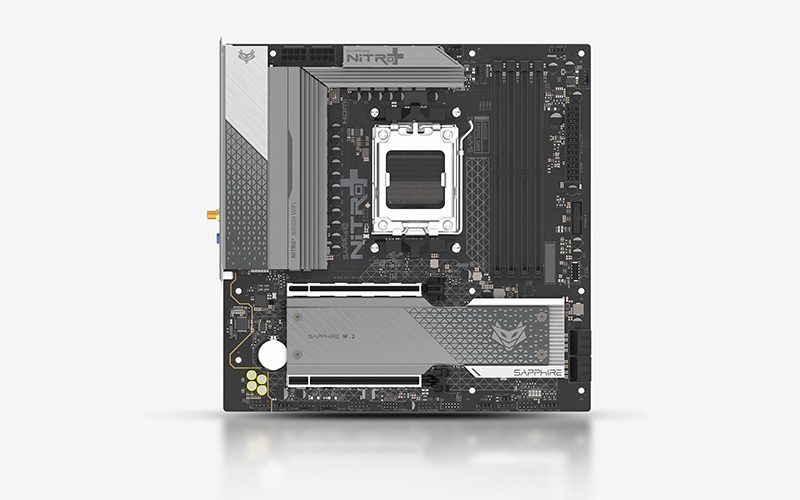

Дънна платка SAPPHIRE NITRO+ B850M MATX WF6

Дънна платка SAPPHIRE NITRO+ B850M MATX WF6

• Модел: NITRO+ B850M WIFI
• Размери: 244 × 244 mm
• Безжична връзка: M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band
• Bluetooth: Bluetooth 5.3 Support
• Аудио: Realtek® ALC897 HD Audio, 5.1 Channel
• Памет: 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)
• Слотове за разширение: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot
• Форм-фактор: Micro-ATX
• Конектори:
  • 4 × SATA
  • 2 × M.2 Storage Slots
  • Front USB Headers
• Поддържани процесори: Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Чипсет: AMD® B850
• Съхранение: 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA
• Портове отзад:
  • 1 × DisplayPort
  • 1 × HDMI
  • 1 × RJ-45
  • 4 × USB 2.0
  • 3 × USB 3.2 Gen 2 Type-A
  • 1 × USB 3.2 Gen 2 Type-C
  • 3 × Audio Jacks
  • 2 × Wi-Fi Antenna Connectors
  • BIOS Flash Button
• Мрежа (LAN): Realtek® RTL8125BG 2.5 Gigabit Ethernet
• BIOS:
  • SAPPHIRE CORE BIOS
  • One-Click BIOS Flash
• USB:
  • Rear: 4 × USB 2.0, 3 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C
  • Front Headers: 1 × USB 3.2 Gen 1 Type-C, 1 × USB 3.2 Gen 1 (2 Type-A Ports), 1 × USB 2.0 (2 Type-A Ports)
• Сокет: AMD AM5
