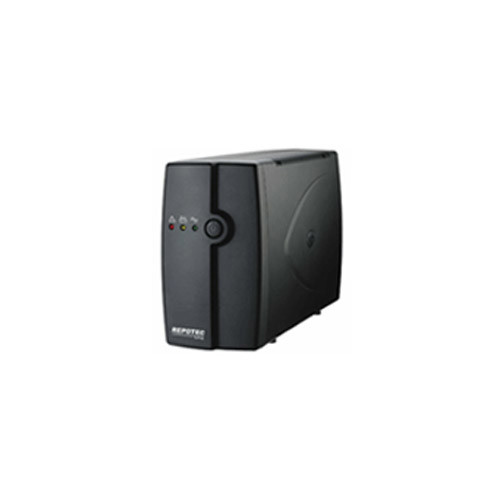

UPS RPT-1003DU 1000VA/AVR/USB

RPT-1003DU 1000VA/AVR/USB

• Модел: RPT-1003DU
• Тип: Line-interactive
• Капацитет: 1KVA/600W
• Input:
  • Voltage:110/115/120VAC or 220/230/240VAC
  • Voltage Range:-30%+25%
  • Frequency:50Hz or 60Hz (Auto Sensing).
• Output:
  • Voltage Regulation(Batt. Mode):110/115/120VAC or 220/230/240VAC +/-10%
  • Frequency:50Hz or 60Hz +/- 1Hz
  • Waveform:Simulated Sine wave
  • Transfer Time:< 6ms (Typical)
  • Outlet:IEC-320/Nema 5-15R 6/6/
  • Universal/German:2/3.
• Интерфейс: Communication port:USB or RS232 port
• Батерия:
  • Voltage:24VDC
  • Recharge Time:5hr to 90% after complete discharge
  • Safety Protection:Over Charge & Discharge Protection
  • Advanced Battery Management:Yes
  • Battery Back-up Time:40 Minutes.
• Display: LED status indicator:Normal (Green), Battery (Yellow), UPS cut off (Red)
• Alarms:
  • Battery Mode:Beeping twice every 8 second
  • Low Battery:Beeping five times every second
  • Overload:Beeping continuously
  • Fault:Beeping continuously.
• Стандарти:
  • Safety Standard:CE (EN62040-1-1, EN50091-1)
  • EMC Standard:FCC Part 15 Class B, CE(EN50091-2, EN61000-3-2, EN61000-3-3).
• Environment:
  • AVR (Auto. Voltage Regulation):2 Boost + 1 Buck
  • DC Start Function:Yes
  • Auto. Restart UPS:Yes
  • Over/Under voltage protection:Yes
  • No load Cut-off (Green mode):Yes
  • Slience the Audible Alarm:Yes
  • Off Mode Charging:Yes
  • Short Circuit Protection:AC fuse and Electronics circuit(Line mode) . Electronics circuit(Back-up Mode)
  • Lightning/ Surge Protection:99 Joules(110/115/120VAC) / 175 Joules (220/230/240VAC)
  • Modem/Phone protection (Optional):RJ-11
  • Operating Temperature:0° C - 40° C (32?~104?)
  • Humidity:0-95% (No condensing)
  • Audible Noise:<40 dB at 1M.
• Размери: 385x98x170mm
